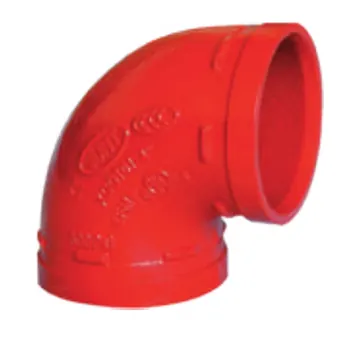

Grooved fitting
Set the options you know: they filter the products below. Add a product from the table, or add one open line and we confirm the model, listing and data sheet in our offer. Products come from established manufacturers; the brand and markings of the item supplied may differ from the photo.
Grooved fitting: products we supply
| Product | Ends | Type | Size | Pressure rating | ||
|---|---|---|---|---|---|---|

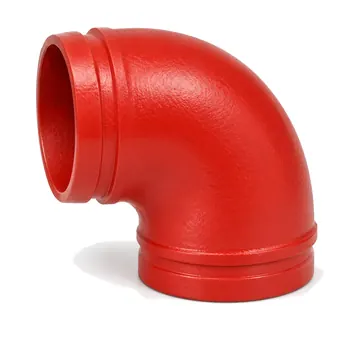

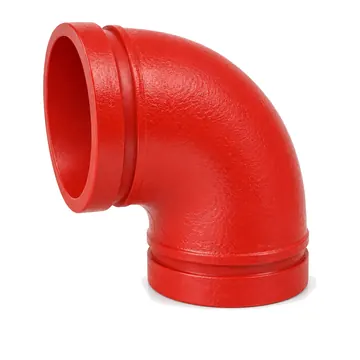

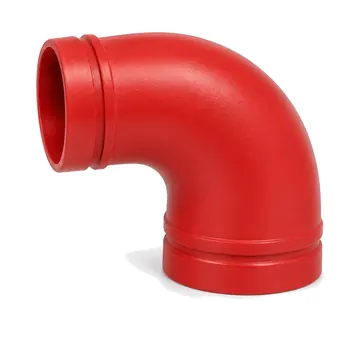

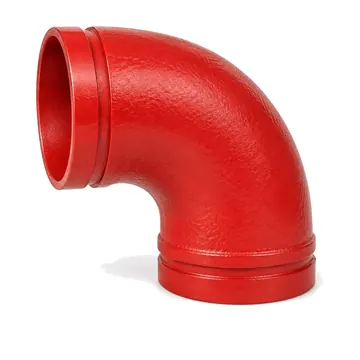

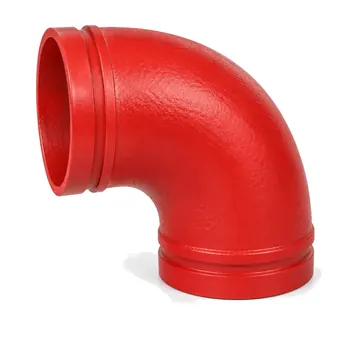

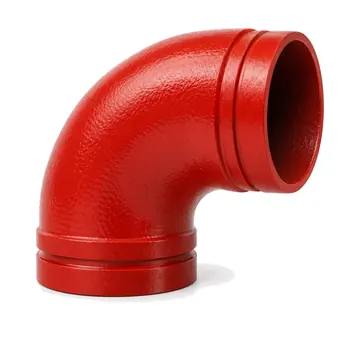

| 90° elbowGrooved · Short and standard · 1"–12" · 300 psi | Grooved | Short and standard | 1"–12" | 300 psi | |

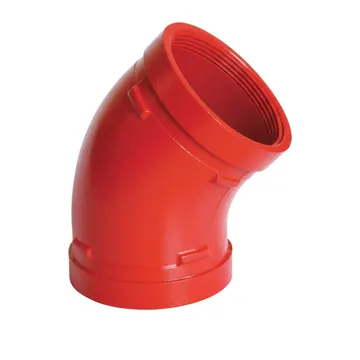

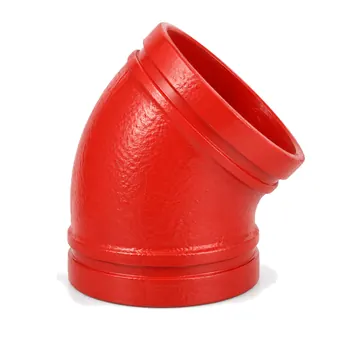

 | 45° elbowGrooved · 1"–12" · 300 psi | Grooved | – | 1"–12" | 300 psi | |

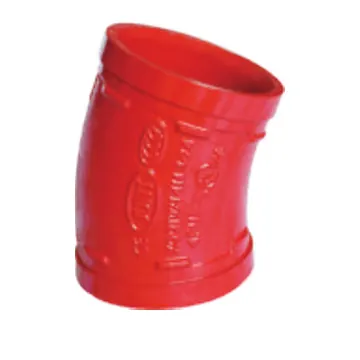

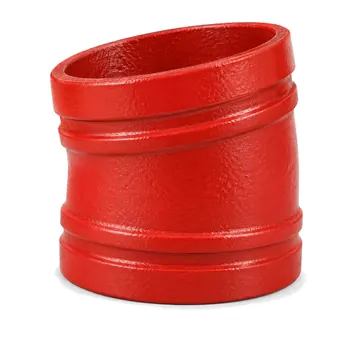

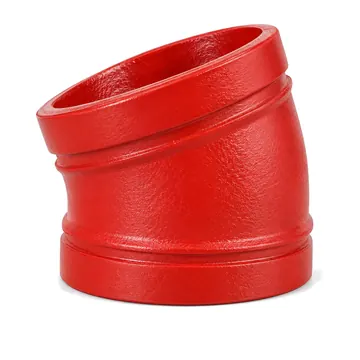

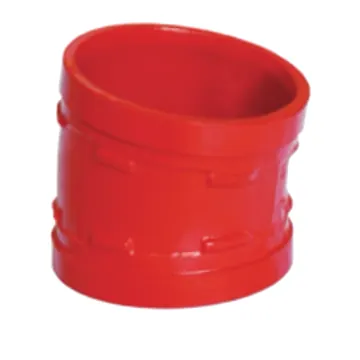

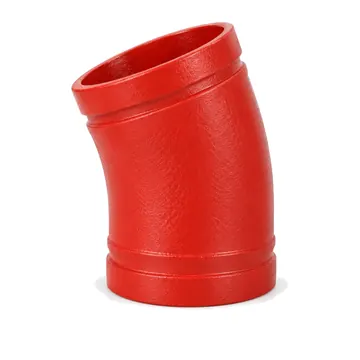

 | 22.5° elbowGrooved · 2"–8" · 300 psi | Grooved | – | 2"–8" | 300 psi | |
 | 11.25° elbowGrooved · 2"–8" · 300 psi | Grooved | – | 2"–8" | 300 psi | |

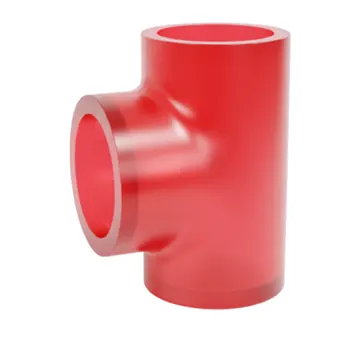

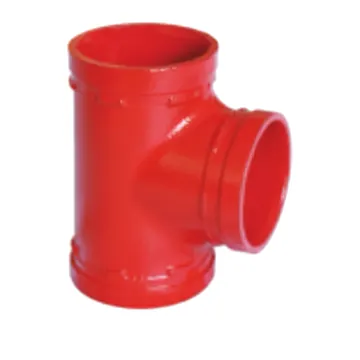

 | TeeGrooved · Equal, short and standard · 1"–12" · 300 psi | Grooved | Equal, short and standard | 1"–12" | 300 psi | |

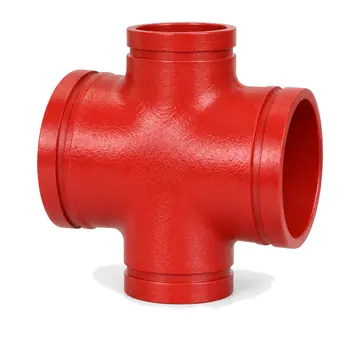

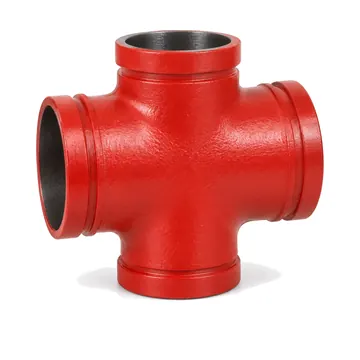

 | CrossGrooved · Equal · 1"–12" · 300 psi | Grooved | Equal | 1"–12" | 300 psi | |

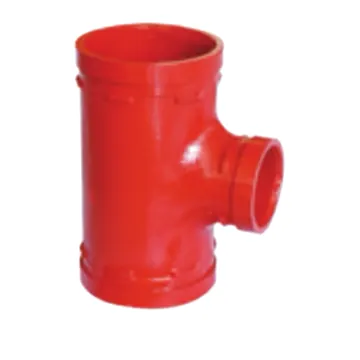

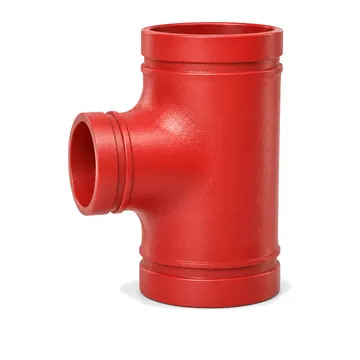

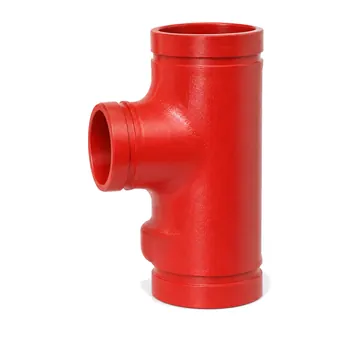

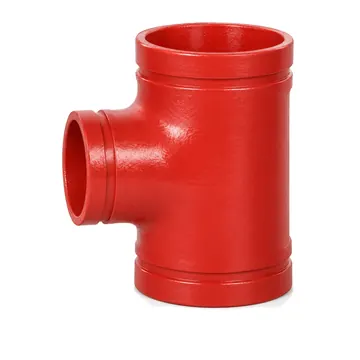

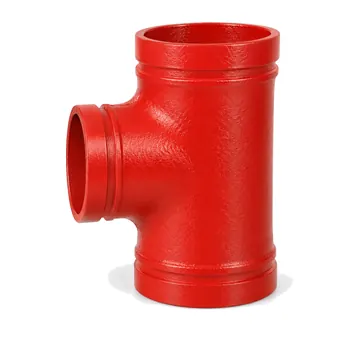

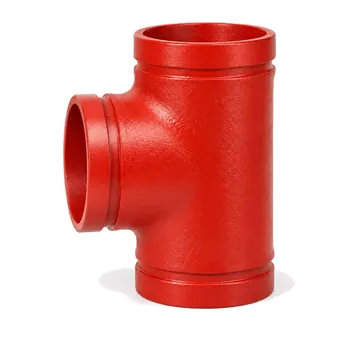

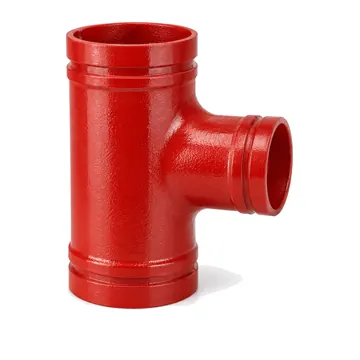

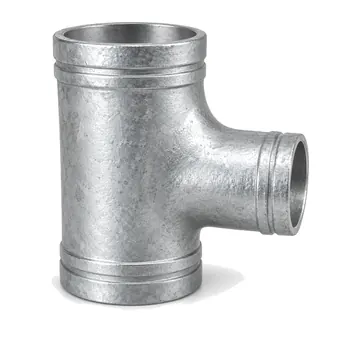

 | Reducing teeGrooved · 2"×1" to 12"×6" · 300 psi | Grooved | – | 2"×1" to 12"×6" | 300 psi | |
 | Reducing teeGrooved run, threaded branch · 2"×1" to 8"×6" · 300 psi | Grooved run, threaded branch | – | 2"×1" to 8"×6" | 300 psi | |

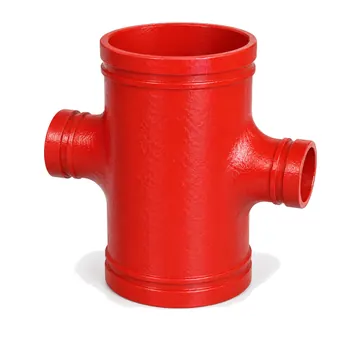

 | Reducing crossGrooved · 2"×1½" to 10"×8" · 300 psi | Grooved | – | 2"×1½" to 10"×8" | 300 psi | |

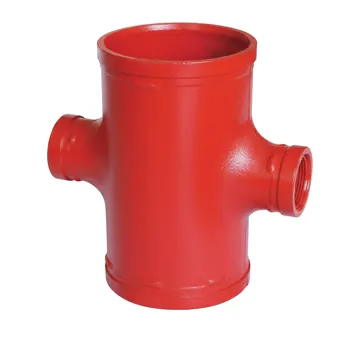

 | Reducing crossGrooved run, threaded branch · 2"×1" to 8"×4" · 300 psi | Grooved run, threaded branch | – | 2"×1" to 8"×4" | 300 psi | |

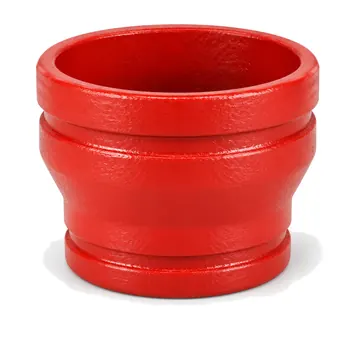

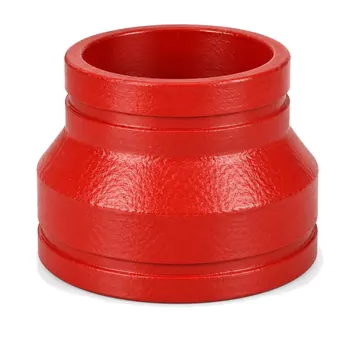

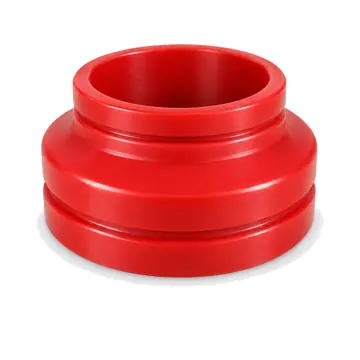

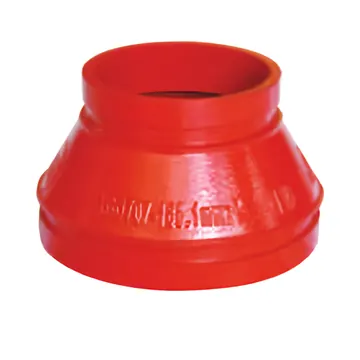

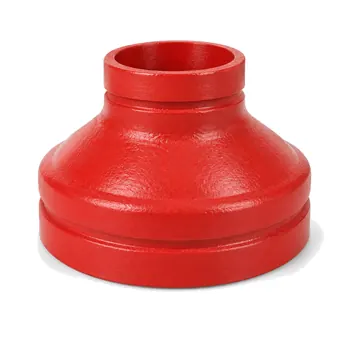

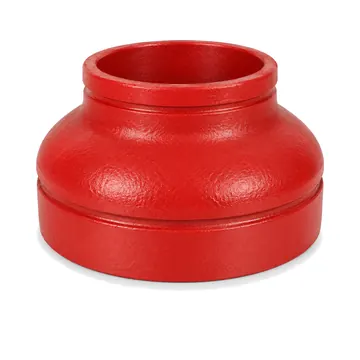

 | Concentric reducerGrooved · 2"×1" to 10"×8" · 300 psi | Grooved | – | 2"×1" to 10"×8" | 300 psi | |

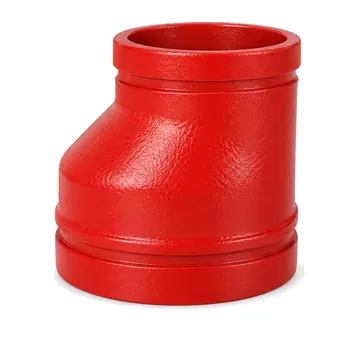

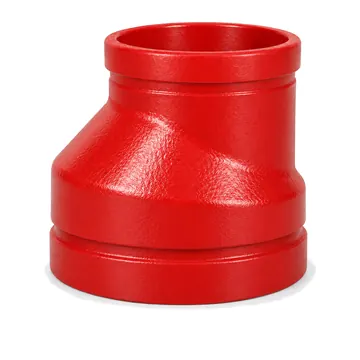

 | Eccentric reducerGrooved · 4"×2½" to 10"×6" · 300 psi | Grooved | – | 4"×2½" to 10"×6" | 300 psi | |

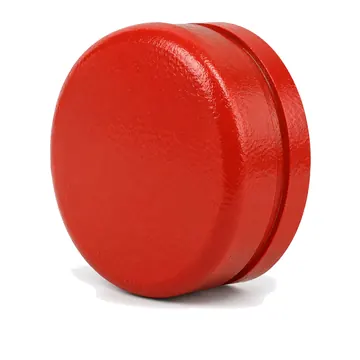

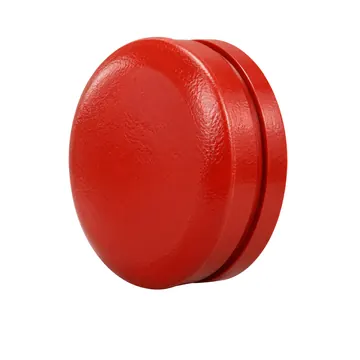

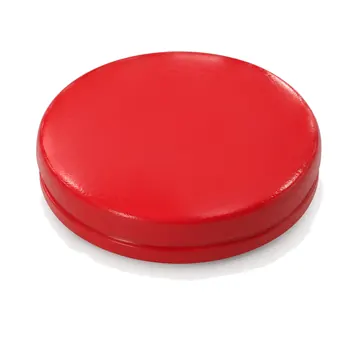

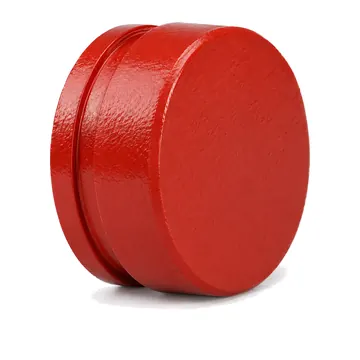

| CapGrooved · 1"–10" · 300 psi | Grooved | – | 1"–10" | 300 psi | ||
 | CapGrooved · Eccentric hole · 2½"×1" to 8"×2" · 300 psi | Grooved | Eccentric hole | 2½"×1" to 8"×2" | 300 psi | |
 | 90° elbowGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | 90° elbowGrooved · Hydrant · 1"–24" · ASTM A536 65-45-12 | Grooved | Hydrant | 1"–24" | – | |
 | 90° elbowGrooved · Drain · 1"–24" · ASTM A536 65-45-12 | Grooved | Drain | 1"–24" | – | |

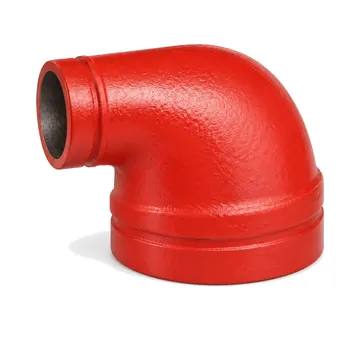

 | 90° elbowGrooved · Reducing · 1"–24" · ASTM A536 65-45-12 | Grooved | Reducing | 1"–24" | – | |
 | 90° elbowGrooved · Light-duty · 1"–24" · ASTM A536 65-45-12 | Grooved | Light-duty | 1"–24" | – | |
 | 90° elbowGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |

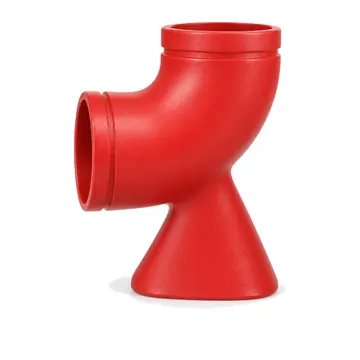

 | Base elbowGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | 90° elbowGrooved · End-all · 1"–24" · ASTM A536 65-45-12 | Grooved | End-all | 1"–24" | – | |
 | 11.25° elbowGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | 22.5° elbowGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | 22.5° elbowGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |

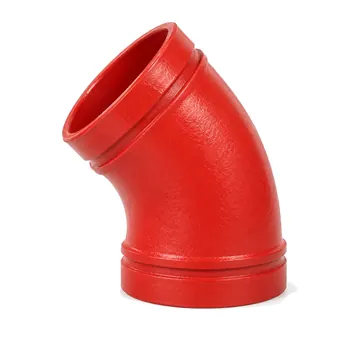

 | 45° elbowGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | 45° elbowGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |
 | TeeGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | Reducing teeGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | Reducing teeGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | TeeGrooved · Light-duty · 1"–24" · ASTM A536 65-45-12 | Grooved | Light-duty | 1"–24" | – | |
 | Reducing teeGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | TeeGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |

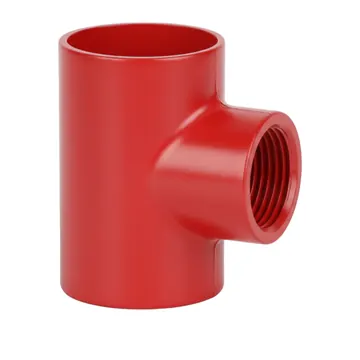

 | Reducing teeGrooved × female thread · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | – | 1"–24" | – | |
 | Reducing teeGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |
 | Reducing teeGrooved × female thread · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | Slim | 1"–24" | – | |
 | Reducing teeGrooved × female thread · Eccentric · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | Eccentric | 1"–24" | – | |

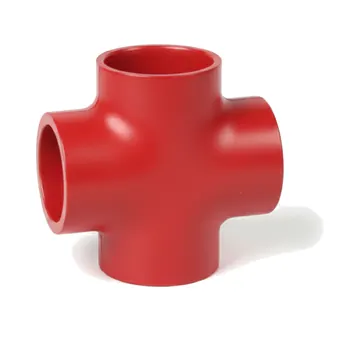

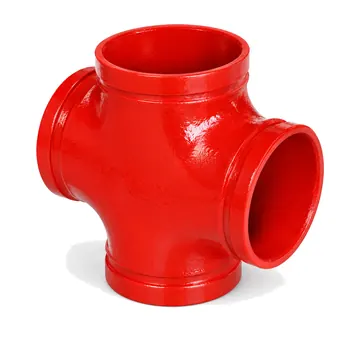

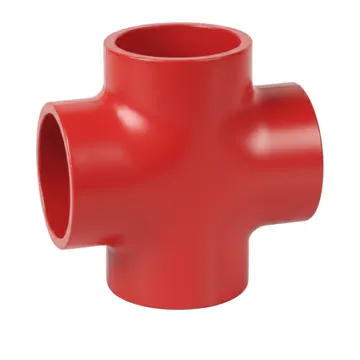

 | CrossGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | CrossGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |
 | Reducing crossGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | Reducing crossGrooved × female thread · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | – | 1"–24" | – | |
 | Reducing crossGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |
 | Reducing crossGrooved × female thread · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | Slim | 1"–24" | – | |
 | Concentric reducerGrooved × female thread · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | – | 1"–24" | – | |
 | Eccentric reducerGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | Eccentric reducerGrooved × female thread · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | – | 1"–24" | – | |
 | Concentric reducerGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | Concentric reducerGrooved · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved | Slim | 1"–24" | – | |
 | Concentric reducerGrooved × female thread · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | – | 1"–24" | – | |

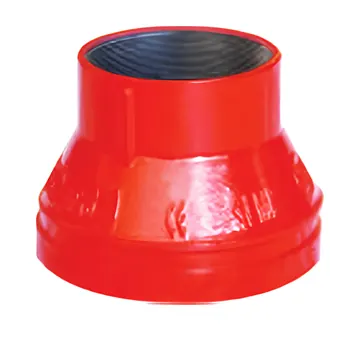

 | Concentric reducerGrooved × male thread · 1"–24" · ASTM A536 65-45-12 | Grooved × male thread | – | 1"–24" | – | |
 | Concentric reducerGrooved × female thread · Slim · 1"–24" · ASTM A536 65-45-12 | Grooved × female thread | Slim | 1"–24" | – | |
 | CapGrooved · 1"–24" · ASTM A536 65-45-12 | Grooved | – | 1"–24" | – | |
 | CapGrooved · Concentric hole · 1"–24" · ASTM A536 65-45-12 | Grooved | Concentric hole | 1"–24" | – | |
 | CapGrooved · Eccentric hole · 1"–24" · ASTM A536 65-45-12 | Grooved | Eccentric hole | 1"–24" | – | |

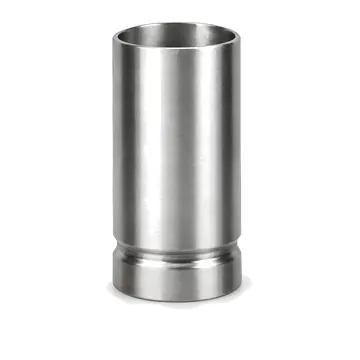

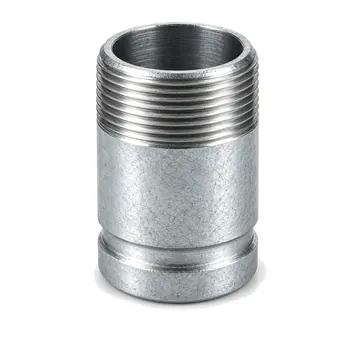

 | Adapter nippleGrooved × bevelled · 1"–24" · ASTM A536 65-45-12 | Grooved × bevelled | – | 1"–24" | – | |
 | Adapter nippleGrooved × grooved · 1"–24" · ASTM A536 65-45-12 | Grooved × grooved | – | 1"–24" | – |
No product here fits every option you set. Your line keeps your options and our engineer offers the closest match.
